Place of Origin:
China
Brand Name:
DR
Certification:
SGS
Model Number:
PVB resin
Contact Us
Excellent Solvent Resistance Polyvinyl Butyral Resin For Gravure Printing Ink
PVB resin dissolve under normal temperature (25 ℃ ), the dissolution time is 30 minutes min.,this characteristic has greatly increased the ink's solubility.

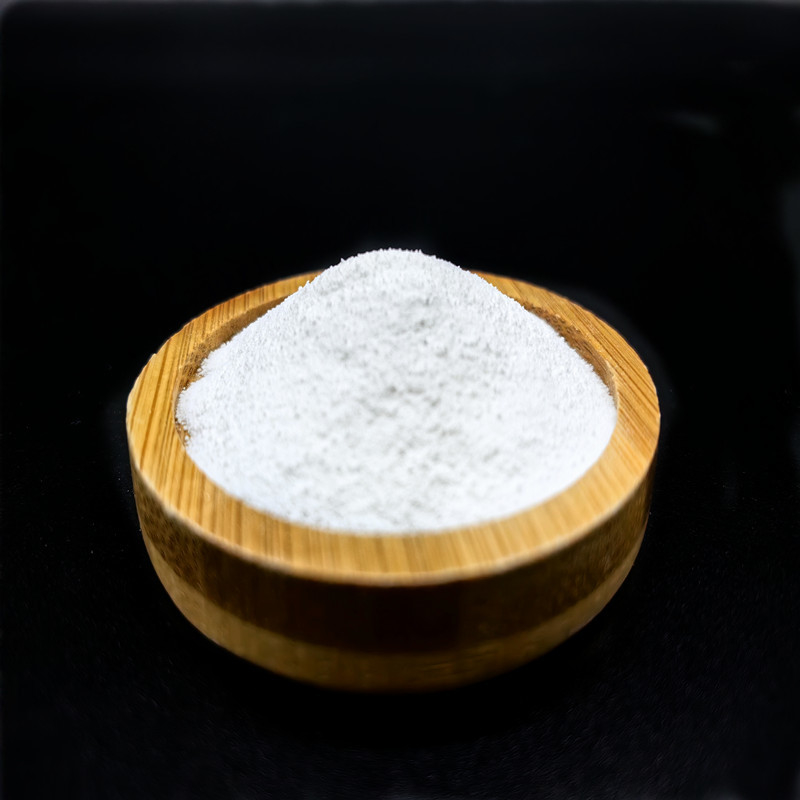

Appearance: Tiny, free flowing white powder
SPECIFICATIONS:
| Item | Volatile content | Non volatile content | Butyral content | Acetate content | Hydroxy content | 10% viscosity | Free acid |
| Unit | Wt-% | Wt-% | Wt-% | Wt-% | Wt-% | mpa.s | MgKOH/g |
| DR-50 | ≤2.0 | ≥98.0 | 76-85 | ≤3.0 | 12-17 | 7-9 | ≤0.5 |
| DR-40 | ≤2.0 | ≥98.0 | 76-85 | ≤3.0 | 12-17 | 9-14 | ≤0.5 |
| DR-30 | ≤2.0 | ≥98.0 | 76-85 | ≤3.0 | 12-17 | 14-20 | ≤0.5 |
| DR-20 | ≤2.0 | ≥98.0 | 76-85 | ≤3.0 | 12-17 | 20-30 | ≤0.5 |
| DR-20SP | ≤2.0 | ≥98.0 | 76-85 | ≤3.0 | 12-17 | 25-40 | ≤0.5 |
| DR-16 | ≤2.0 | ≥98.0 | 76-85 | ≤3.0 | 12-17 | 30-55 | ≤0.5 |
| DR-17 | ≤2.0 | ≥98.0 | 76-85 | ≤3.0 | 12-17 | 35-60 | ≤0.5 |
| DR-18 | ≤2.0 | ≥98.0 | 76-85 | ≤3.0 | 12-17 | 80-110 | ≤0.5 |
| DR-13 | ≤2.0 | ≥98.0 | 76-85 | ≤3.0 | 12-17 | 160-260 | ≤0.5 |
PVB resin meet the following regulations regarding food contact plastic material:
1)The REGULATION (EC) No 1935/2004 – Article 3.1;
2) Commission regulation(EU) No 10/2011 on plastic materials and articles intended to come into contact with food.
3) The United States food and drug administration’s 21 CFR § 175.105 adhesive, 21 CFR § 175.300 resin and polymer coating, 21 CFR § 176.170 paper composition and paper board contact with water and high fat food.
Product’s main characteristics:
1.Low viscosity PVB resin that is suitable for flexo and gravure printing, has good adhesion to polyolefins, metal, cellulose acetate, polyester, cellophane paper, polyamide and polystyrene film;
2.Low viscosity PVB resin as the foundation of the printing ink shows a low solvent resistance, good liquidity, good waterproof, which could be independently used as the basic resin, and could be used together with alcohol soluble nitrocellulose, acetone condensation resin, alkyd resin, maleic resin and other natural polymer;
3.Suggested quantity added to: 18-30% for DR-40; 15-20% for DR-30; 10-15% for DR-20; 5-15% for DR-16/DR-17/DR-18;
4.Dissolve under normal temperature (25 ℃ ), the dissolution time is 30 minutes min., this characteristic has greatly increased the ink’s solubility;
5.Low viscosity PVB resin has good wettability and pigment dispersion;
6. Non-toxic, tasteless, odorless, no aromatic element, no heavy metal, no plasticizer, is the first choice of resin for environment friendly printing ink.
Storage:
Under a dry and cool (25 ℃ or less) condition, the product can be stored for at least 12 months if sealed in original packaging.
Preventive measures: during the operation process of dissolving,appropriate take safety measures, and prevent electrostatic.
