Excellent Pigment Dispersion Polyvinyl Butyral Resin For Printing Inks

Excellent Pigment Dispersion Polyvinyl Butyral Resin For Printing Inks

Low viscosity PVB resin that is suitable for flexo and gravure printing, has good adhesion to polyolefins, metal, cellulose acetate, polyester, cellophane paper, polyamide and polystyrene film.

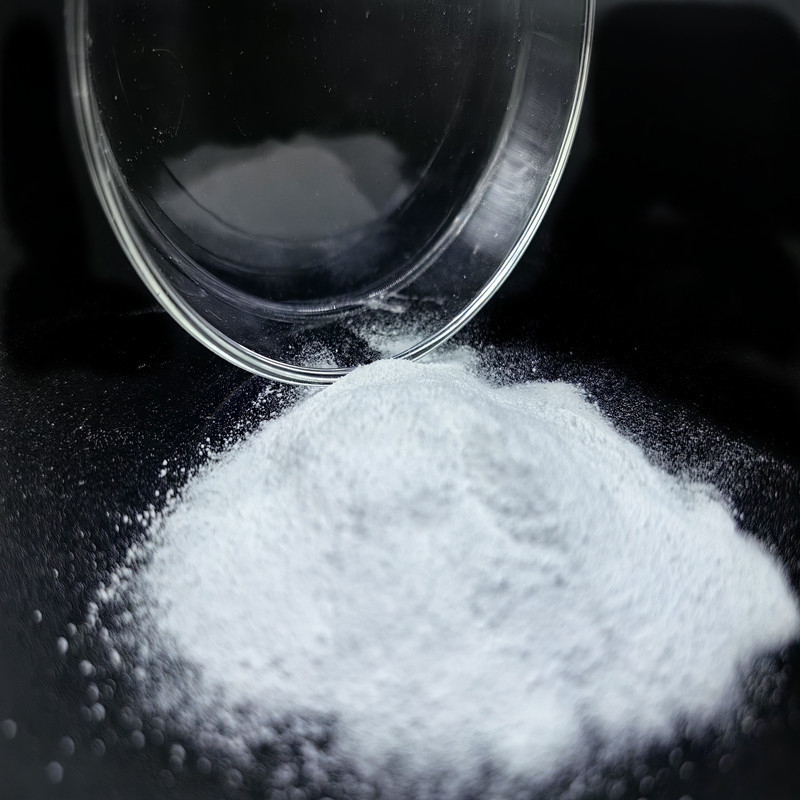

Appearance: Tiny, free flowing white powder

SPECIFICATIONS:

PVB resin meet the following regulations regarding food contact plastic material:

1)The REGULATION (EC) No 1935/2004 – Article 3.1;
2) Commission regulation(EU) No 10/2011 on plastic materials and articles intended to come into contact with food.
3) The United States food and drug administration’s 21 CFR § 175.105 adhesive, 21 CFR § 175.300 resin and polymer coating, 21 CFR § 176.170 paper composition and paper board contact with water and high fat food.

Product’s main characteristics:

1.Low viscosity PVB resin that is suitable for flexo and gravure printing, has good adhesion to polyolefins, metal, cellulose acetate, polyester, cellophane paper, polyamide and polystyrene film;

2.Low viscosity PVB resin as the foundation of the printing ink shows a low solvent resistance, good liquidity, good waterproof, which could be independently used as the basic resin, and could be used together with alcohol soluble nitrocellulose, acetone condensation resin, alkyd resin, maleic resin and other natural polymer;

3.Suggested quantity added to: 18-30% for DR-40; 15-20% for DR-30; 10-15% for DR-20; 5-15% for DR-16/DR-17/DR-18;

4.Dissolve under normal temperature (25 ℃ ), the dissolution time is 30 minutes min., this characteristic has greatly increased the ink’s solubility;

5.Low viscosity PVB resin has good wettability and pigment dispersion;

6.Non-toxic, tasteless, odorless, no aromatic element, no heavy metal, no plasticizer, is the first choice of resin for environment friendly printing ink.

Solvent selection:

Solvent preparation:

1)Low viscosity PVB resin can be dissolved in a variety of organic solvent and mixed solvent, alcohol is the best solvent, esters and ketones are inferior solvent comparing with alcohol, aliphatic hydrocarbon and aromatic hydrocarbon solvents are insoluble, but they can be used as diluents together with alcohol solvent;
2)Solution: lunch agitator stirring solution in slow or medium speed, under room temperature proportionally and slowly add PVB powder, could increase the stirring speed after solution wetting;
3)Viscosity of solution, decomposition velocity depend on the type, temperature and stirring speed of the solution;

4)Low viscosity PVB resin can be processed and used by the general equipment of printing ink and paint industry.

Storage:

Under a dry and cool (25 ℃ or less) condition, the product can be stored for at least 12 months if sealed in original packaging.

Preventive measures: during the operation process of dissolving,appropriate take safety measures, and prevent electrostatic.
